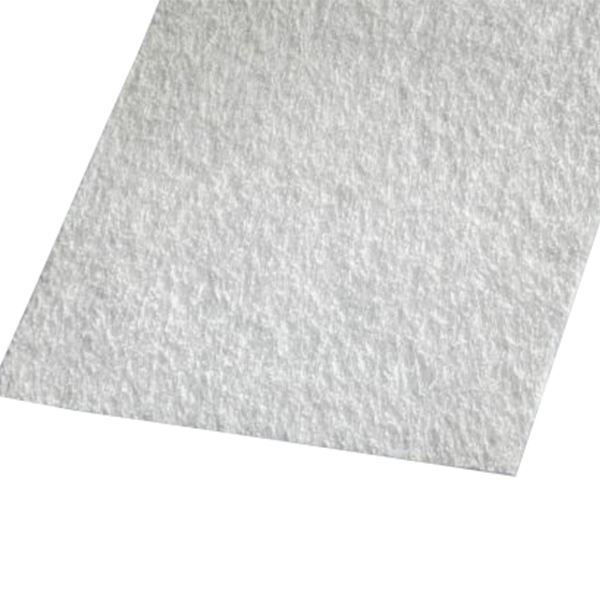

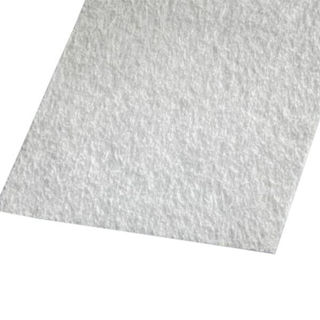

Geotextile Non-Woven Underlay S8NW 4.5 x 100m

Geotextile Non-Woven Underlay S8NW 4.5 x 100m is a UV stabilized, needle punched, and heat treated nonwoven geotextile produced from 100% polypropylene staple fibers. It acts as separator to prevent the intermixing of the different soil layer types, and as filter to allow the flow of fluids while preventing the passage of soil particles. Applications include road, railway and drainage.
Availability: In stock
SKU: GEOS8NW
€286.57 incl vat

Geotextile Non-Woven Underlay S8NW 4.5 x 100m is a UV stabilized, needle punched, and heat treated nonwoven geotextile produced from 100% polypropylene staple fibers. It acts as separator to prevent the intermixing of the different soil layer types, and as filter to allow the flow of fluids while preventing the passage of soil particles. Applications include road, railway and drainage.

  • Mechanical properties with tensile strengths from 6 kN/m to 30 kN/m, and CBR puncture strengths from 0.86 kN to 4.8 kN.
  • Hydraulic properties with water flow rates normal to the plane from 45 l/m2/sec to 144 l/m2/sec allowing for quick release of water pressure and opening sizes from 60 to 128 mm that accommodate all soil types.
  • Maximum widths of 6.0 m for jumbo rolls and varying widths based on client's needs.
  • Available in standard 100m length jumbo rolls or mini roll lengths of varying sizes.
  • Weight between 80 and 380 gr/m2.

Geotextile Non-Woven Underlay S8NW 4.5 x 100m is a UV stabilized, needle punched, and heat treated nonwoven geotextile produced from 100% polypropylene staple fibers. It acts as separator to prevent the intermixing of the different soil layer types, and as filter to allow the flow of fluids while preventing the passage of soil particles. Applications include road, railway and drainage.

  • Mechanical properties with tensile strengths from 6 kN/m to 30 kN/m, and CBR puncture strengths from 0.86 kN to 4.8 kN.
  • Hydraulic properties with water flow rates normal to the plane from 45 l/m2/sec to 144 l/m2/sec allowing for quick release of water pressure and opening sizes from 60 to 128 mm that accommodate all soil types.
  • Maximum widths of 6.0 m for jumbo rolls and varying widths based on client's needs.
  • Available in standard 100m length jumbo rolls or mini roll lengths of varying sizes.
  • Weight between 80 and 380 gr/m2.
*
*
*
*
